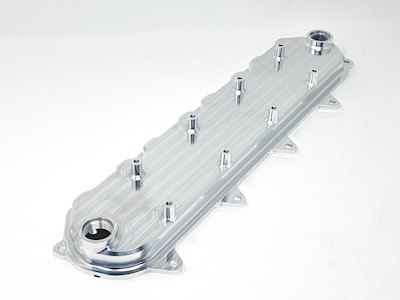

Harding Performance billet aluminum valve covers for LT engines are CNC machined from 6061-T6 billet aluminum for an extremely light weight and attractive design. They can be purchased in raw aluminum if you are going to be powdercoating yourself, or you can choose from a wide array of colors which also provide a protective finish. Even if you want the raw billet look, we recommend going with the clear powdercoat. Titanium fasteners are included and an be driven by either 10mm socket or 5mm allen, allowing for tool versatility for hard to reach areas.
-Made from 6061-T6 billet aluminum
-Lightweight design
-With or without coil mounts
-Clears Magnuson TVS2650 and port fuel adapter plates
-Two -12ORB port locations per cover for a multitude of configurations
-Baffled (using OEM HP1043 fitting or with AN fittings and HP1136 baffle kit)
-Optional powdercoating (please allow 5 business days)
-Titanium mounting bolts
-Titanium coil bolts (coil mount version only)
-Versatile multi-drive bolt system uses either 10mm socket or 5mm allen
-GM gaskets included
Fits:
-2014-2019 Corvette Stingray, Grand Sport, Z06 and ZR1
-2016-2024 Camaro SS and ZL1
-2014+ Chevrolet/GMC/Cadillac trucks with LT engines
Titanium M6x1.0x22mm Hex Flange Bolts With 5mm allen drive included:
Due to the multitude of application variation, fittings, oil caps, plugs and additional brackets are sold separately. (See related products)
You can choose from:
-Hex plug
-Oil cap
-6AN fitting
-8AN fitting
-10AN fitting
-12AN fitting
-OEM quick disconnect fittings featuring internal oil baffling system
-Dipstick tube bracket for wet sump engines
-C8 Corvette installation kit with everything you need to install in your C8.
Recommended fitting configurations:
-Wet sump Corvette/Camaro with OEM PCV connections:
----1 Oil cap, 1 plug, 2 HP1043 baffled fittings
-Dry sump Corvette/Camaro with OEM PCV connections:
----2 plugs, 2 HP1043 baffled fittings
-Wet sump Corvette/Camaro with AN fittings:
----1 Oil cap, 1 plug, 2 AN fittings, 1 baffle kit
-Dry sump Corvette/Camaro with AN fittings
----2 plugs, 2 AN fittings, 1 baffle kit
