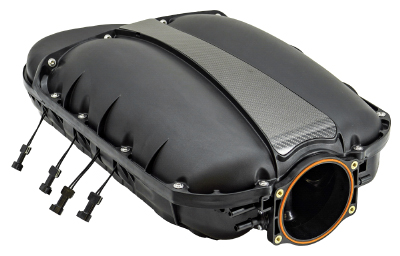

The XS Intake Manifold breaks the mold of the existing intake manifold architecture to maximize available space under the hood. When designing the optimum intake runner length and shape the fuel rail gets in the way…so we moved it….inside the intake manifold! After testing all the mainstream manifolds available, our manifold has done what no other did…make horsepower and torque gains on a stock engine with gains increasing as the engine got more aggressive with cam and exhaust upgrades. All other manifolds lost on HP or Torque to make the gain on the other.
This move presents several engineering challenges we overcame. First, fuel must be delivered to the fuel rails. To do this, we engineered and manufactured a bespoke fuel rail for this product with a feed port in a precise location to interface with a custom fitting. This fitting passes through the intake manifold housing through a provision engineered into the upper shell gasket. A fuel crossover feeds the opposite bank. Next, injector electrical connectors need to find their way inside the intake manifold. We do this by using a short injector jumper harness which passes through a sealed grommet for each injector jumper. All custom molded seals are engineering to seal this innovative packaging strategy.
The intake manifold runners were developed using CFD (Computational Fluid Dynamics) then several runner designs were tested on the engine dyno to validate the performance gains. We ended with staggered runners with 3 lengths to optimize overall performance. Burst testing was conducted to ensure structural integrity beyond 6 bar (86psi). We will be releasing the first production pieces to several key partners to conduct further testing in various combinations.
The XS intake manifold fits all LS3-style cylinder head ports including L92, L99, L76, L77, LY6, LY2, L20, LMF, LC9, LH8, LH9, L9H and L94.
Even with the additional features and components required for this unique design, Performance Design is able to offer this intake manifold at a price significantly less than existing products on the market.
Specifications & Features
-Injection molded glass reinforced nylon construction
-Modular runners with 3 staggered lengths for best performance
-Billet fuel rails* with external quick disconnect near stock location
-Accepts standard EV6 LS3/LS7-style injectors
-Injector extension wires passed through sealed grommets
-90-103mm or 112mm forward facing throttle body flange (throttle body not included)
-Carbon fiber center bolt cover
-Factory MAP sensor location
-PCV and Canister Purge Solenoid OEM connections
-Includes stainless steel hardware for installation
-Includes molded port, plenum and throttle seals
-Intake can be reversed on the engine
-Fits under the hood an cowl of a C6 Corvette
-CARB E.O. Pending
*Pre-production fuel rails shown. Production fuel rails will not be anodized.
There are currently no reviews of this
product.
Submit a Review
Option | SKU | Price |
Throttle body opening: 90-101mm | 70655.01 | $899.99 |
Throttle body opening: 103 | 70715.01 | $999.99 |
Throttle body opening: 112mm | 70660.01 | $999.99 |
|
